REVBOT Quick Release Wired Adaptors

REVBOT All-In-One Wired Quick-Release Adapter System

Next-Gen "Hot-Swap" Power & Mounting Solution For Premium LED Auxiliary Lights

The REVBOT Wired Quick-Release System is an advanced upgrade designed specifically for high-end, multi-function motorcycle fog lights and auxiliary LED pods (such as the REVBOT Luxon Ultra series).

While standard quick-release brackets require you to manually unplug separate waterproof pigtail connectors after detaching the light, this revolutionary system bridges physical mounting and electrical connectivity into a single click. Sliding the light into place mechanically locks the mount and connects the power simultaneously.

Key Features

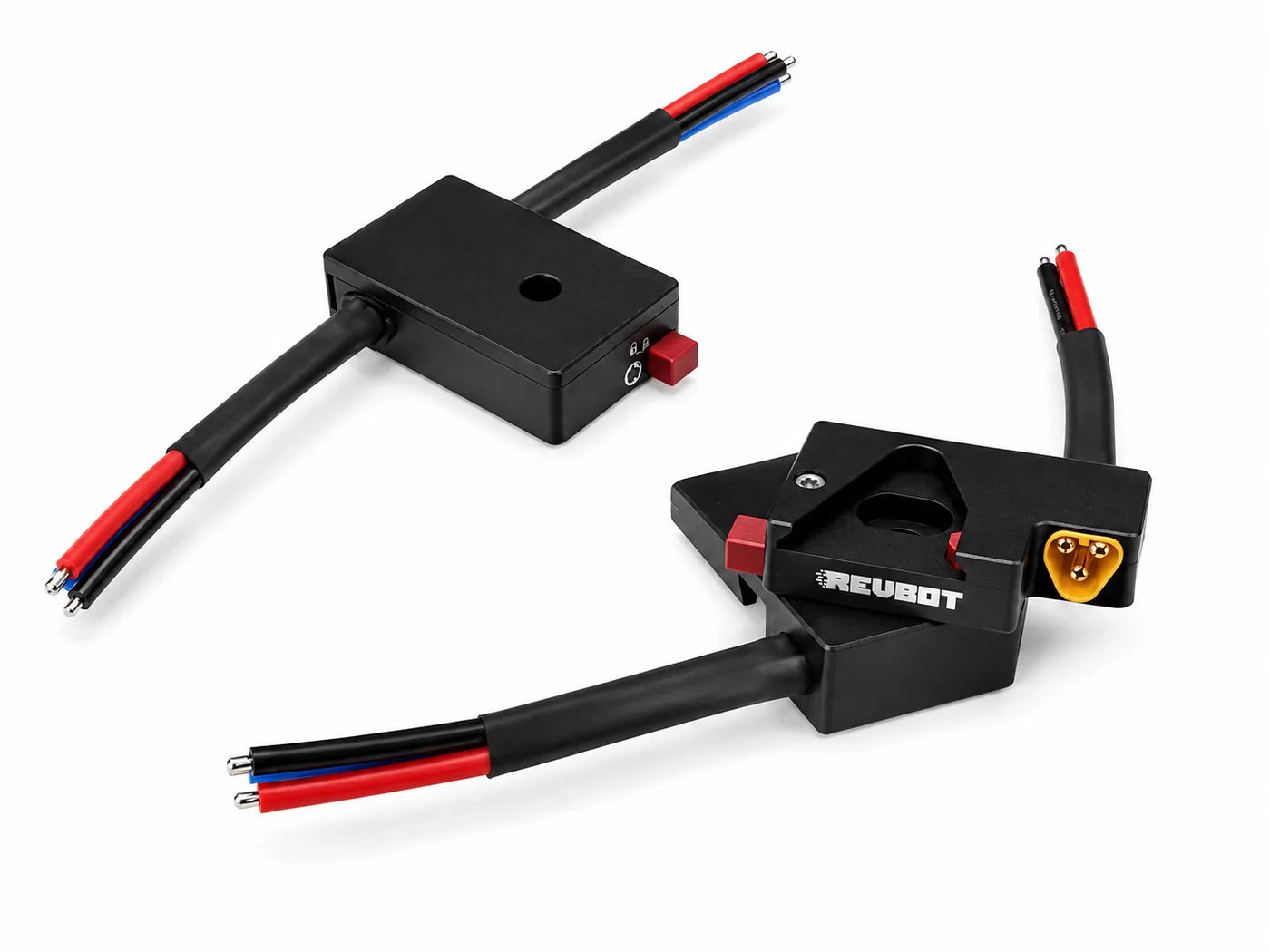

• Integrated "Hot-Swap" Contact Pins: The interlocking blocks feature an internal, heavy-duty male-to-female pin connection (visible via the specialized yellow terminal plug and matching gold-ringed receptacle). Power flows instantly when docked and breaks completely when released—no separate wire-tugging required.

• 3-Wire Support for Advanced Light Modes: Featuring high-grade 3-core insulated pigtails (Red, Black, and Blue leads), these adapters natively support premium lights that feature dual-intensity output, high/low beam switching, or independent Daytime Running Lights (DRL).

• IP-Rated Weatherproofing: When the blocks slide together and lock, the internal electrical contacts are entirely sealed inside a weatherproof, vibration-isolated composite matrix, preventing water, mud, or dust from short-circuiting your wiring harness.

• Proprietary Anti-Theft Security: High-end auxiliary lights are a prime target for thieves. The system includes two specialized, winged security keys. Once locked, the quick-release mechanism is immobilized, ensuring your lights stay securely on your bike when parked.

• High-Vibration Dampening: Engineered to withstand the relentless oscillations of single-cylinder adventure bikes and V-twins, the heavy-duty stainless steel hardware prevents the mechanism from backing out over rough terrain.

• What’s Included In The Kit

  • 1x Fully Assembled Profile Block (Left): Shown for reference to display how the internal channel and wiring align seamlessly when docked.

  • 2x Mating Quick-Release Power Blocks (Right): The vehicle-side receiver and light-side adapter, pre-wired with 3-core heavy-insulated leads and integrated gold-plated terminal pins.

  • 2x Proprietary Anti-Theft Keys: Specialized wing-handled security tools to lock/unlock the red release tabs.

  • 1x Complete Stainless Steel Hardware Pack:

    • 6x Heavy-duty mounting bolts

    • 6x Flat washers

    • 6x Split-ring lock washers

    • 6x Hex nuts

  • 1x Allen Wrench: For immediate, tool-box-ready installation.
