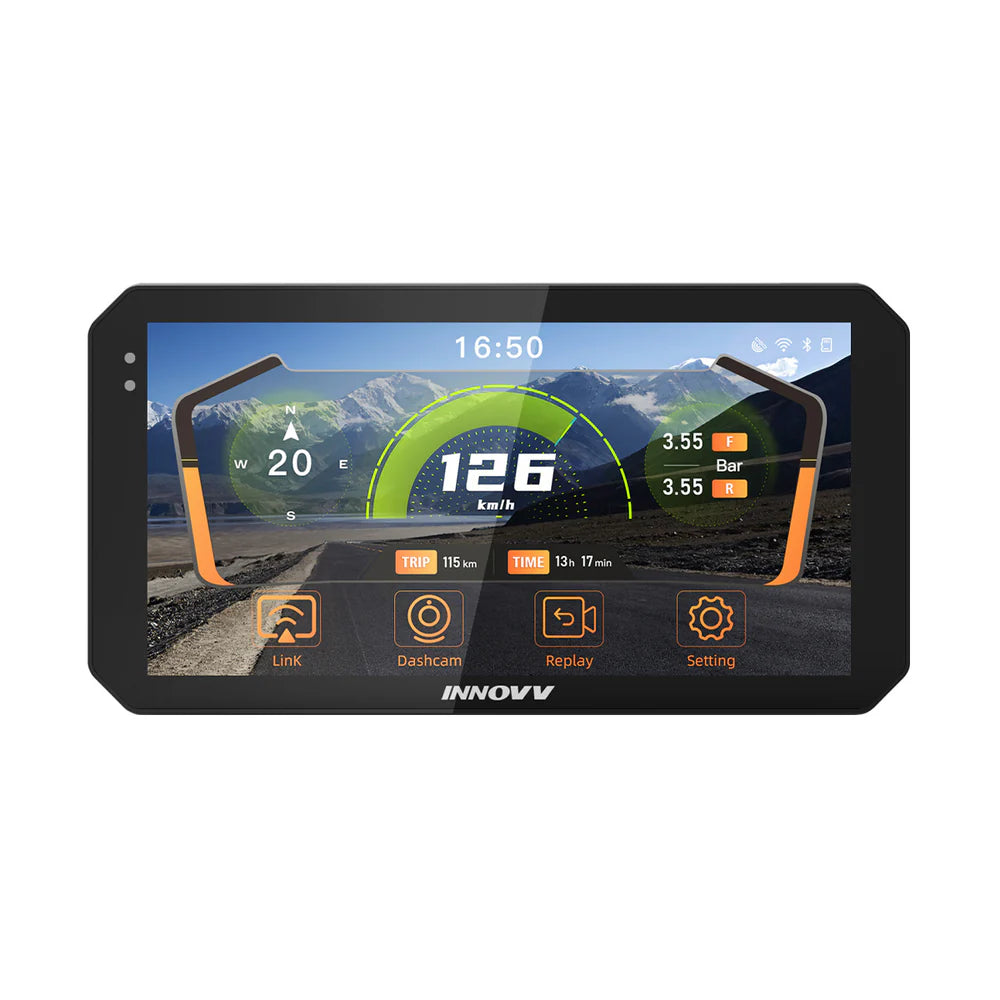

INNOVV N2 Smart Riding System

The INNOVV N2 is a universal smart display system designed for motorcycles, integrating support for cameras, GPS, and external tire pressure monitoring systems (TPMS) in one seamless unit.

It is compatible with a wide range of motorcycle types, including scooters, adventure bikes, sport bikes, and more.

Overview:-

• Supports CarPlay and Android Auto for seamless smartphone connectivity, enabling easy access to navigation, music, and calls
• Optional GPS module includes compass display, real-time speed tracking, and latitude/longitude logging for accurate ride tracking
• Supports OTA (Over-The-Air) cloud updates to ensure your system is always up to date with the latest features and improvements
• Optional dual-camera setup available in 1080P or 2K resolution:

1. 1080P camera features the SONY IMX307 sensor for clear footage and excellent low-light performance
2. 2K camera features the SONY IMX335 sensor for higher-definition video recording

• Supports dual-band Wi-Fi (5GHz / 2.4GHz) for fast and stable wireless connectivity
• Optional tire pressure monitor for real-time tire pressure tracking to enhance ride safety
• Optional 10GHz high-precision GPS module for more accurate positioning and reliable navigation
• IP67-rated waterproof and dustproof protection ensures durability against rain, dust, and harsh outdoor riding conditions

N2 Key Specifications.

Display

• Dimensions: 160 × 85 × 28 mm (Approx. 5.99-inch viewing area)
• Input Voltage: 9–16V
• Operating Current: 620mA @ 12V
• Standby Current: 20µA
• Operating Temperature: –15°C to +60°C

2K Camera

• Dimensions: 28 × 40 mm
• Cable Length: Front 1m / Rear 3m
• Sensor: Sony IMX335
• Max Resolution: 2K @ 30FPS

1080P Camera

• Dimensions: 25 × 44 mm
• Cable Length: Front 1m / Rear 3m
• Sensor: Sony IMX307
• Max Resolution: 1080P @ 30FPS
