Kriega US Drypack Fit Kit - Triumph Trident 660

The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the seat using the existing mounting locations.

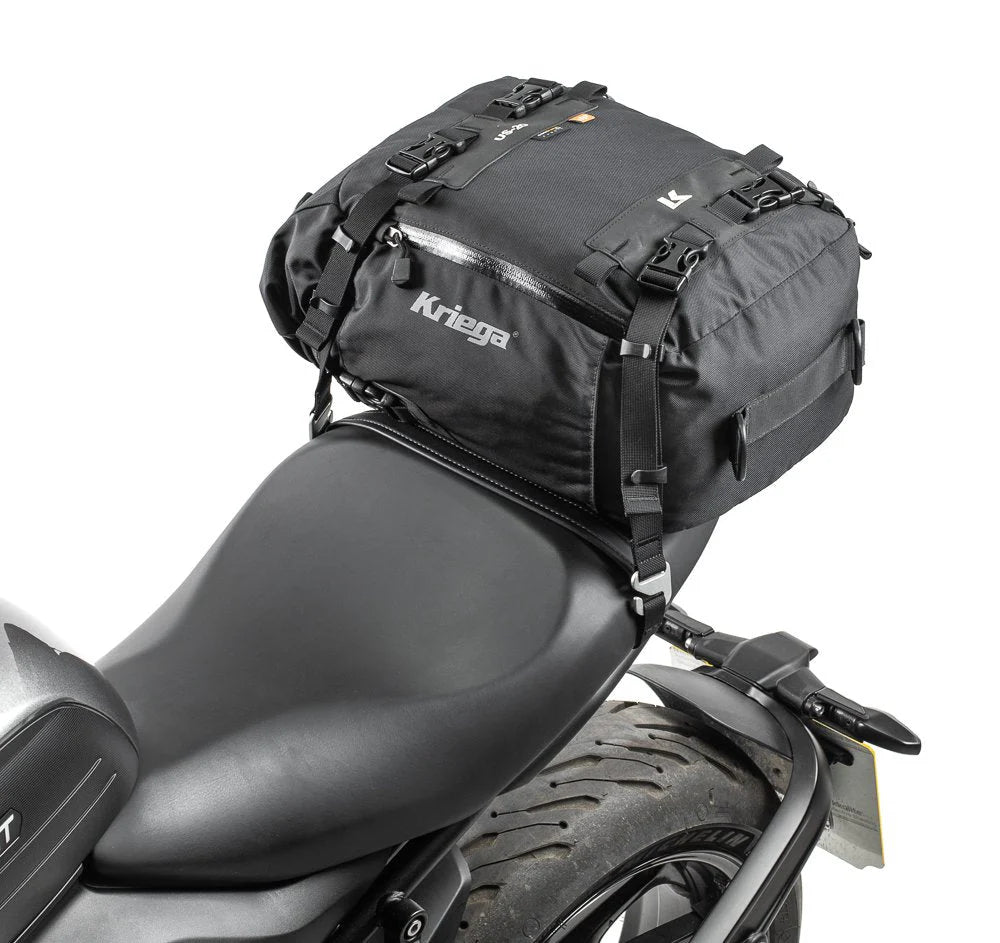

Once fitted, they provide strong hook-on points for any Kriega US-Drypack or US-Drypack Combo.

PACK CONTENTS

2 x 80mm bolt-on loops
2 X 65mm bolt-on loops
2 x M5 washers
2 x M6 washers
2 x 25mm M5 bolts

FITTING

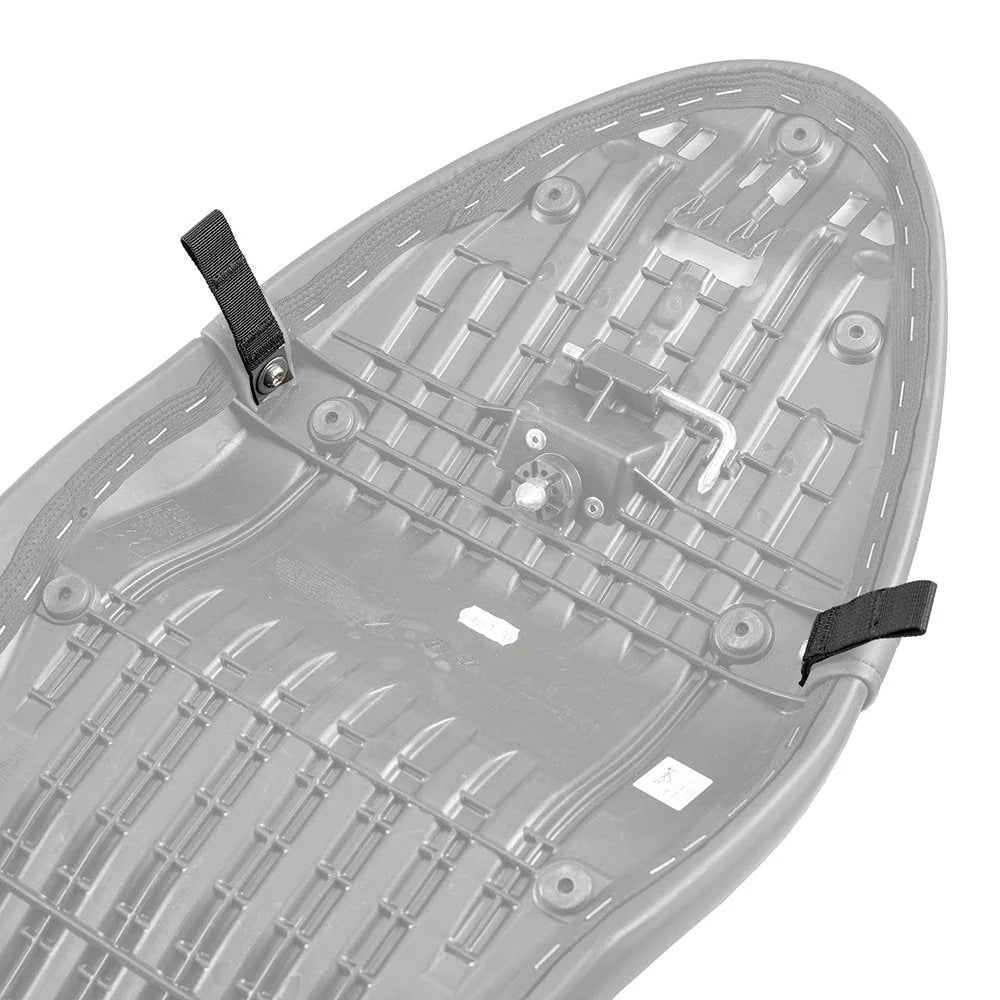

Slide an M6 washer inside each hypalon end of the 80mm bolt-on loops.
Unscrew the seat strap bolts, add the bolt-on loops and reattach, as illustrated.

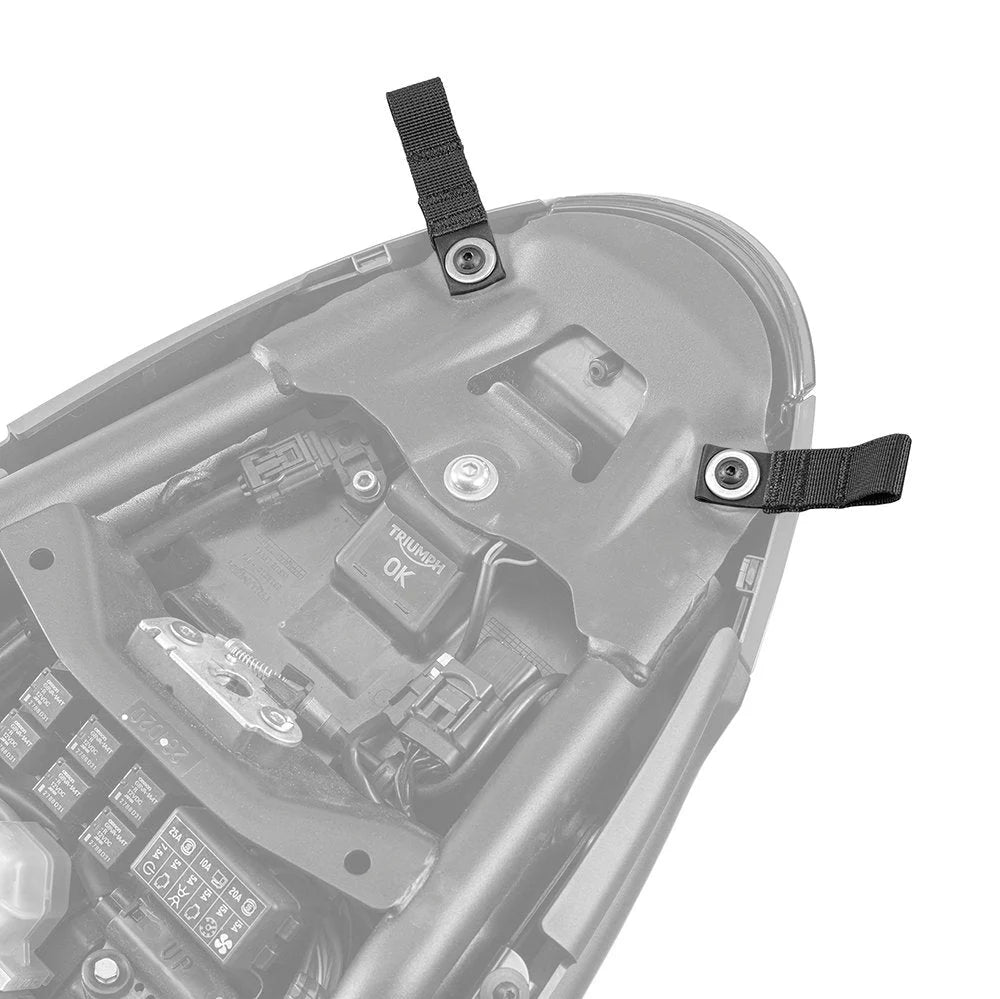

Slide an M5 washer inside each hypalon end of the 65mm bolt-on loops.
Unscrew the two rear M5 panel bolts, keep the M5 washers but replace the bolts with the new 25mm bolts.
Add the bolt-on loops and reattach, as illustrated.

PRODUCT CODE
KATTFK

WEIGHT
20g
