Kriega US Drypack Fit Kit - BMW R1250GS/F750/850

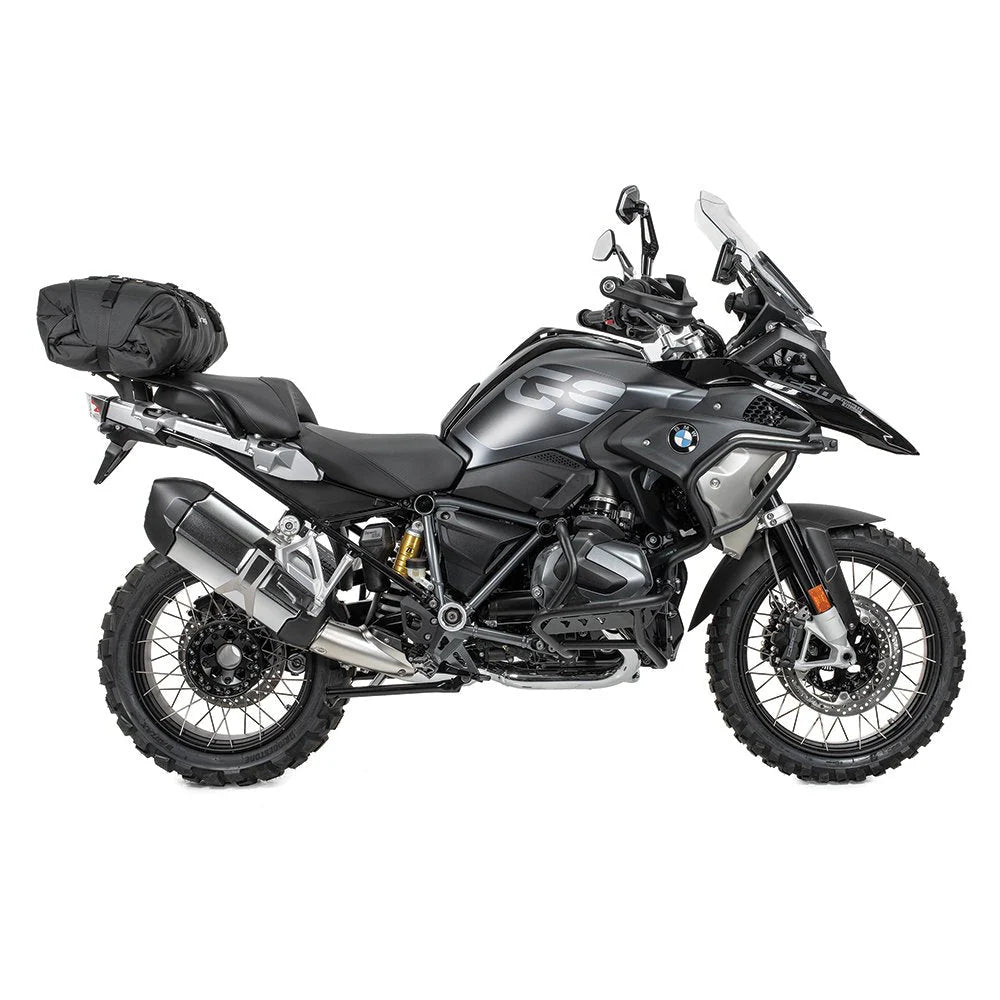

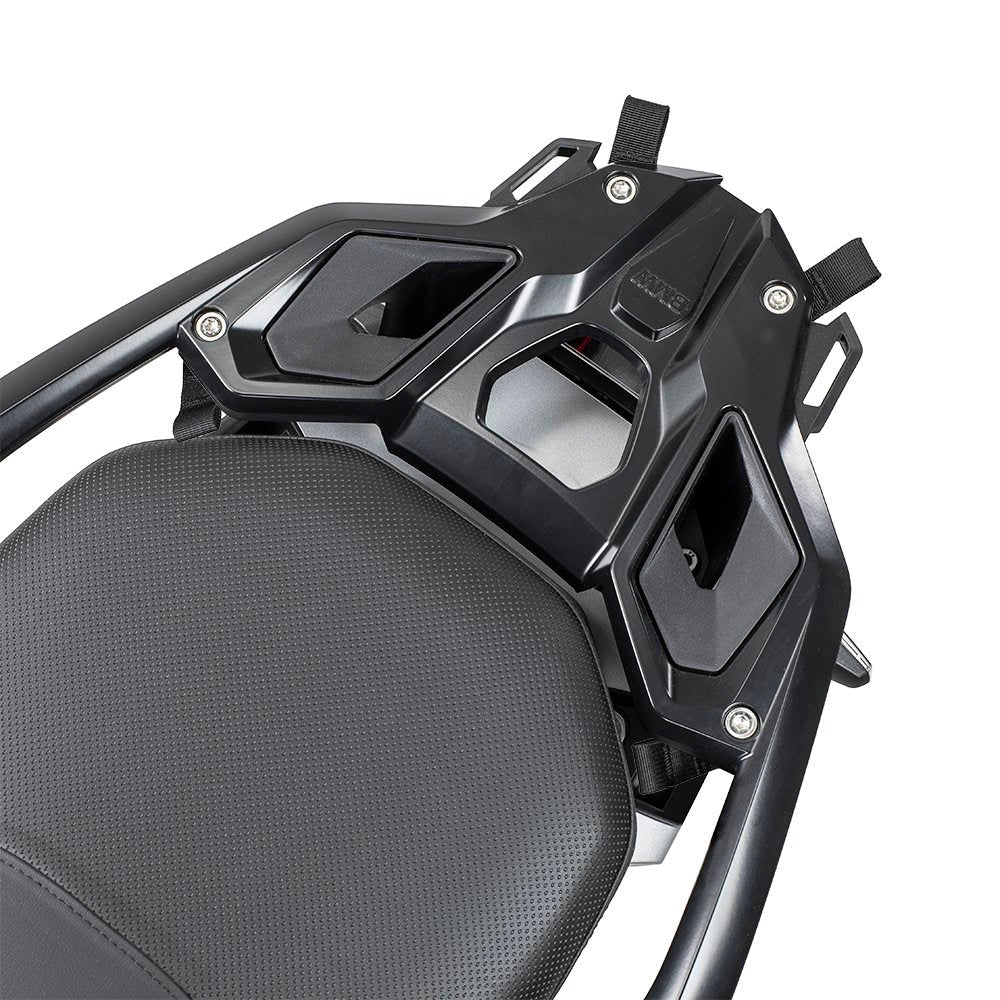

This fit kit will also fit the latest model F750 GS or F850 GS with the cast aluminium OEM luggage rack as illustrated here. It will NOT fit the tube type rack and also excludes all GS ADVENTURE models.

The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the standard OEM luggage mount using the existing mounting locations.

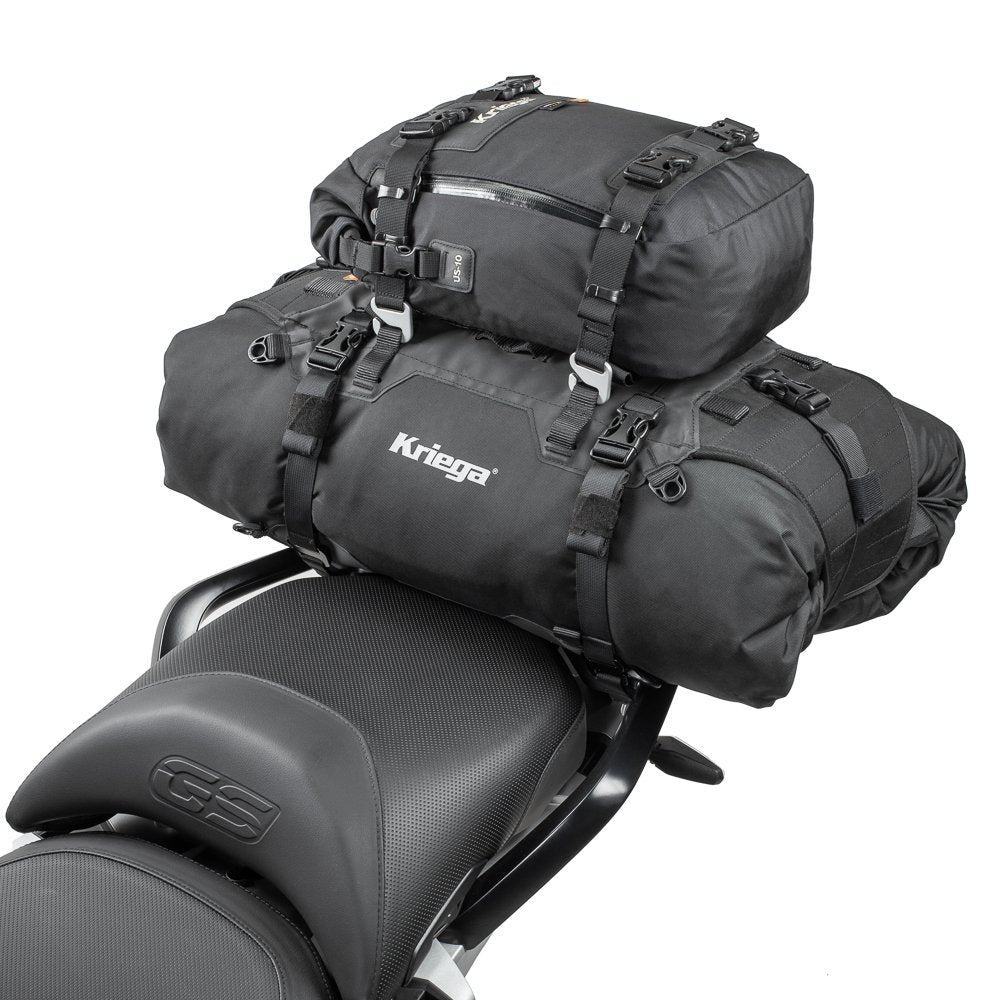

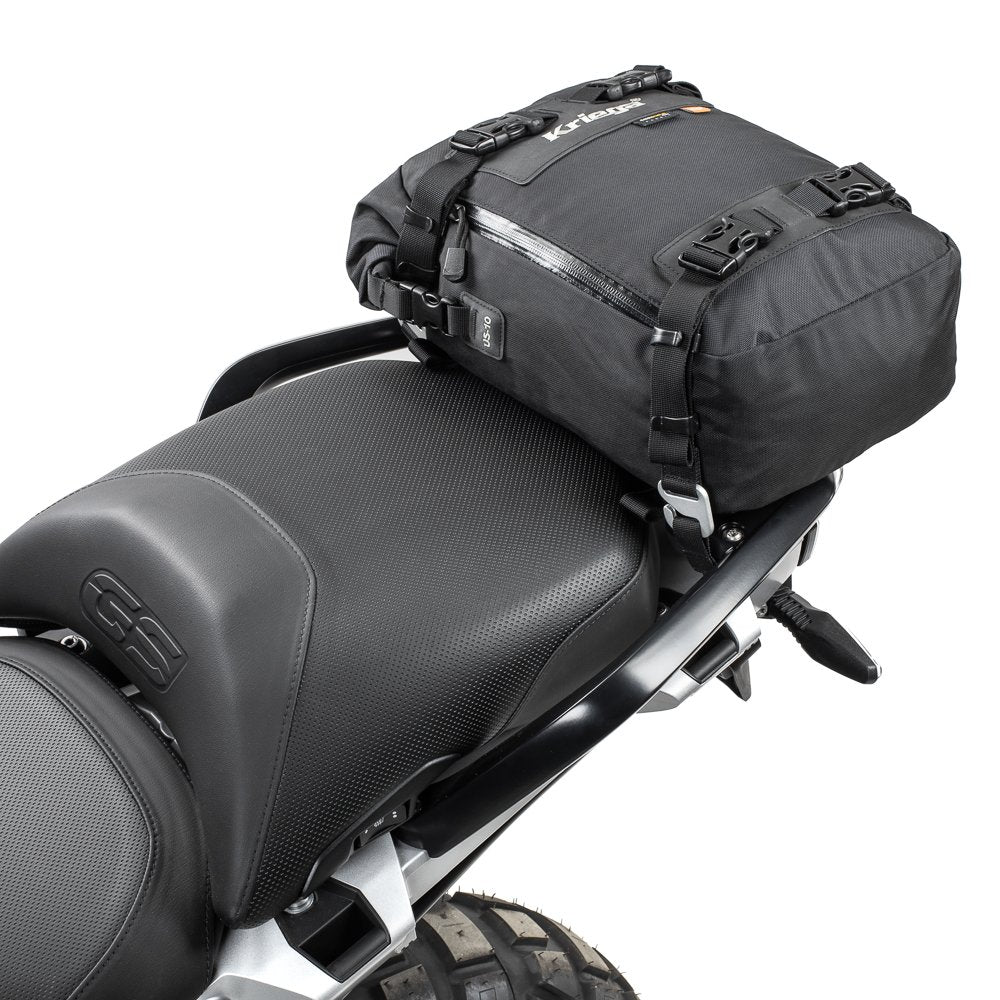

Once fitted, they provide strong hook-on points for any Kriega US-Drypack / US-Drypack Combo or OS-Adventure Packs.

FITTING

Unscrew the 4 luggage carrier bolts and replace the 4 longer M6 bolts provided and tighten to 5 Nm.

Slide an M6 washer inside each hypalon end of the bolt-on loops.

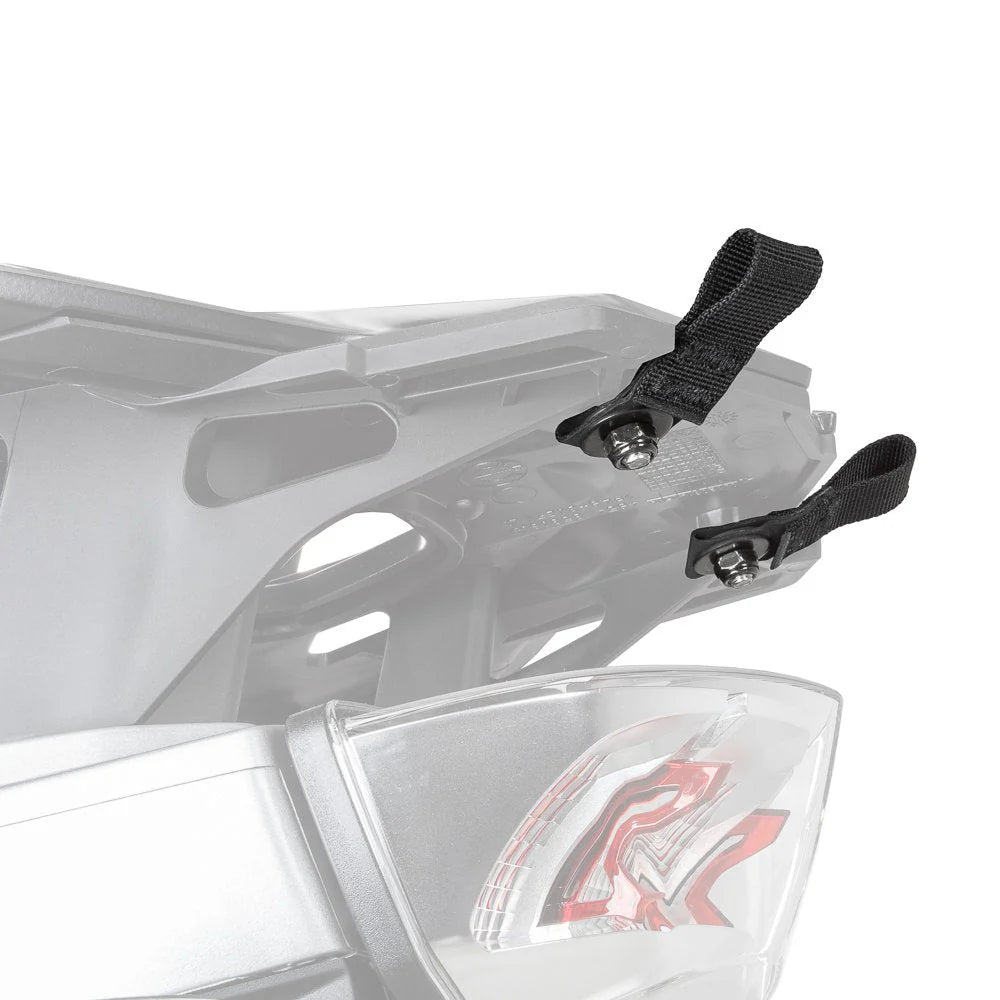

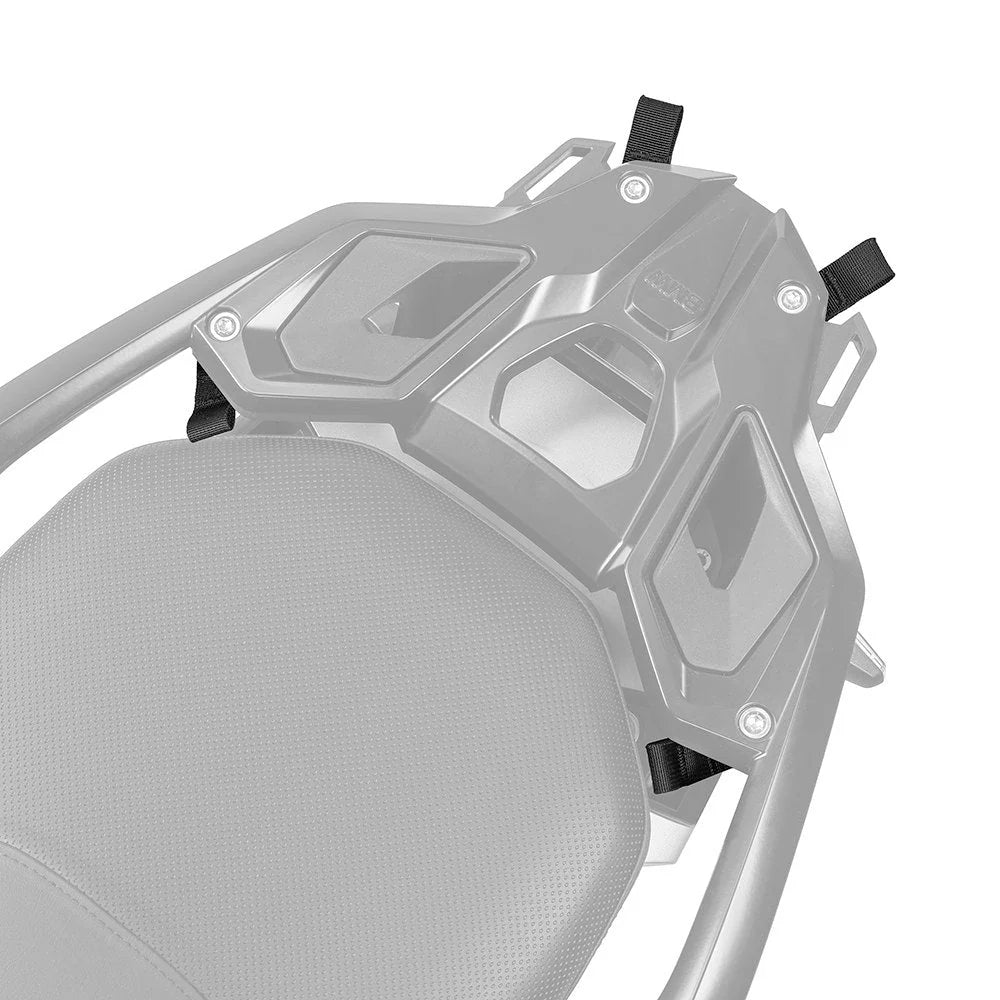

The two 50mm bolt-on loops mount on the rear of the underside of the luggage carrier. Mount the loops onto the extra thread of the M6 bolts using another washer and a nyloc nut.

Repeat the process on the front of the rack with the 65mm bolt-on loops and tighten the nuts.

Terms & Conditions

• Kriega products will ship out in 4-5 Business days once order is placed.
• Images shown for illustration purpose only.
• Actual product may vary in finish, specifications, look without any discretion from manufacturer.
• Kriega products do not qualify for any exchange, returns, refunds or replacements as per listed return policy.
• All claims for warranty to be handled by manufacturer directly under official India Channel partner as per official warranty terms.

PACK CONTENTS

2 x 50mm bolt-on loops
2 X 65mm bolt-on loops
8 x M6 washers
4 x 30mm M6 bolts
4 x M6 nyloc bolts

PRODUCT CODE

KABGFK

20g
